Bonjour les amis
Un montage que j'ai fait dernièrement
Les composantes pour ce build :
Boîtier : Bitfenix Prodigy mITX Mini-ITX Tower Case Arctic BLACK 1X5.25EXT 5X3.5INT No PS Top USB3.0 HD Audio
PSU : EVGA Supernova NEX650G 650W ATX EPS12V Power Supply 80PLUS Gold
Carte mère : ASUS P8Z77-I Deluxe mITX LGA1155 Z77 DDR3 1PCI-E16 SATA3 DVI HDMI DisplayPort USB3.0 Motherboard
CPU : Intel Core i5 3570K Unlocked Quad Core Processor LGA1155 3.4GHZ Ivy Bridge 6MB Retail
Mémoire : 2X 4GO G.ZKILL RipjawsZ 2133 black CL9-11-10-28 1.65V Memory Kit
GPU : 1x EVGA GTX 480
SSD : 2x OCZ Vertex 3 SATA III 2.5" SSD 60GB (Raid0 OS)
HDD : 1x WD Caviar Blue 1TB

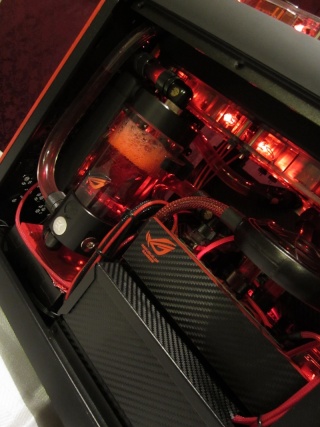

Système de refroidissement :

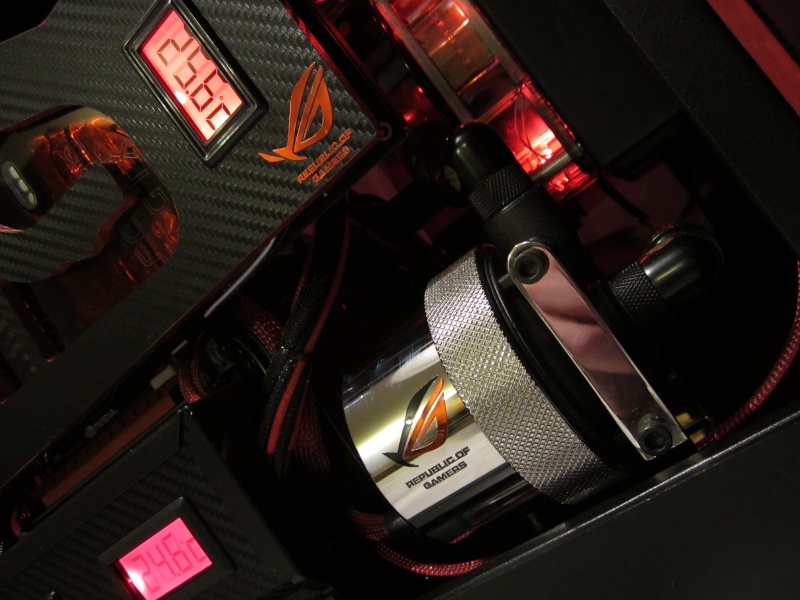

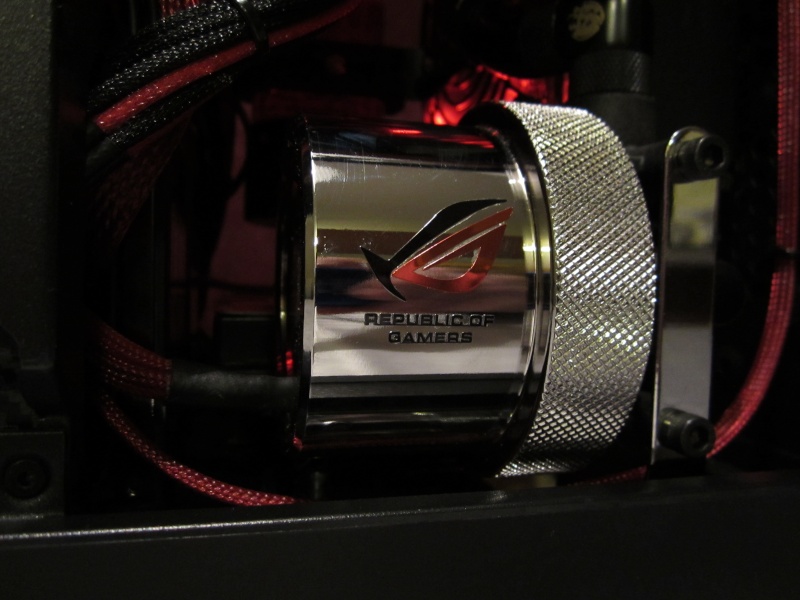

1x Pompe D5
1x Bitspower - D5 Pump Modding Kit - Red
1x Cross-Flow Slim High Density Dual 120mm Radiator XSPC EX240
1x Slim High Density Single 120mm Radiator XSPC EX120
1x EK-Multioption X2 RES 150 ADVANCED - Ver 2 60mm
1x Feser One - Cooling Fluid - UV RED
1x EK waterblock 480
1x Bitspower Universal RAM Module Water Cooling Set (2 Banks)
13x Bitspower 3/8"ID - 5/8"OD Straight Compression Fitting Black
1x Primochill Primoflex Pro LRT Clear 3/8IN ID 5/8IN OD Tubing
5x Stop Plug Fitting - G1/4" Matt Black w/UV Green O-ring
1x Fill/Drain Port Sealing Plug w/ 3/8"ID Tubing Barb - Matt Black
3x 45 Degree High Flow Rotary Adapter M/F G1/4 - Black
4x G1/4" 90 Degree G1/4" Adapter - Black
6x Ventilateur BITFENIX Spectre Pro 120 mm - LED Rouge 1800RPM 51.3CFM 22.5DBA
1x Waterblock CPU Swiftech HD
Case & GPU Modding

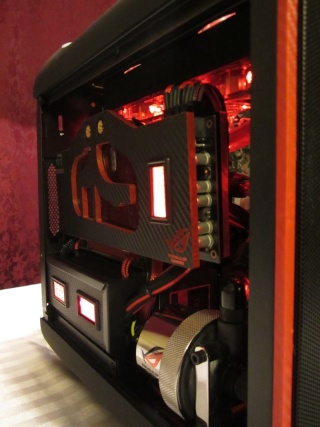

2x Backplate GPU Black + LCD costum (CNC)
2x Side panel Black + LCD costum (CNC)
6x Guard 120mm black
16x Radiator M4 Mounting Screw & Nut, 25mm (see compatibility)
1x EK-VGA bracket GeForce Black costum

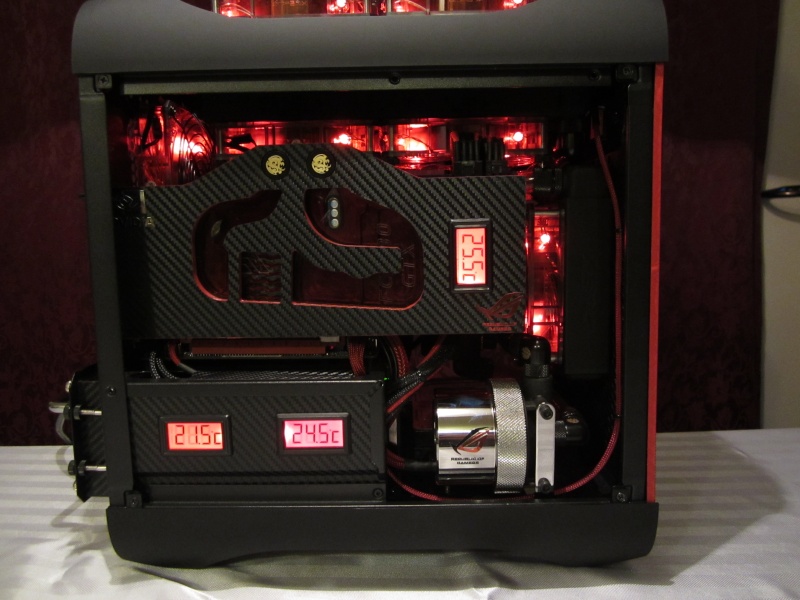

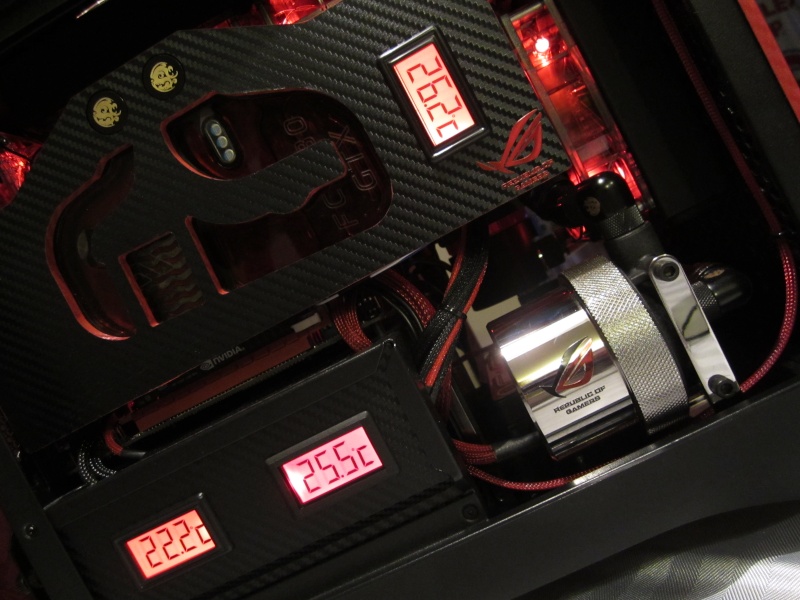

4x XSPC Mini LCD Display with Temperature Sensor - Red
1x 6-Pin PCI-E DarkSide Single Braid Cable - Black & Red
1x 8-Pin PCI-E DarkSide Single Braid Cable - Black & Red
1x 4+4 EPS DarkSide Single Braid Cable - Black & Red
1x 24-Pin ATX DarkSide HSL Single Braid Cable - Black & Red
