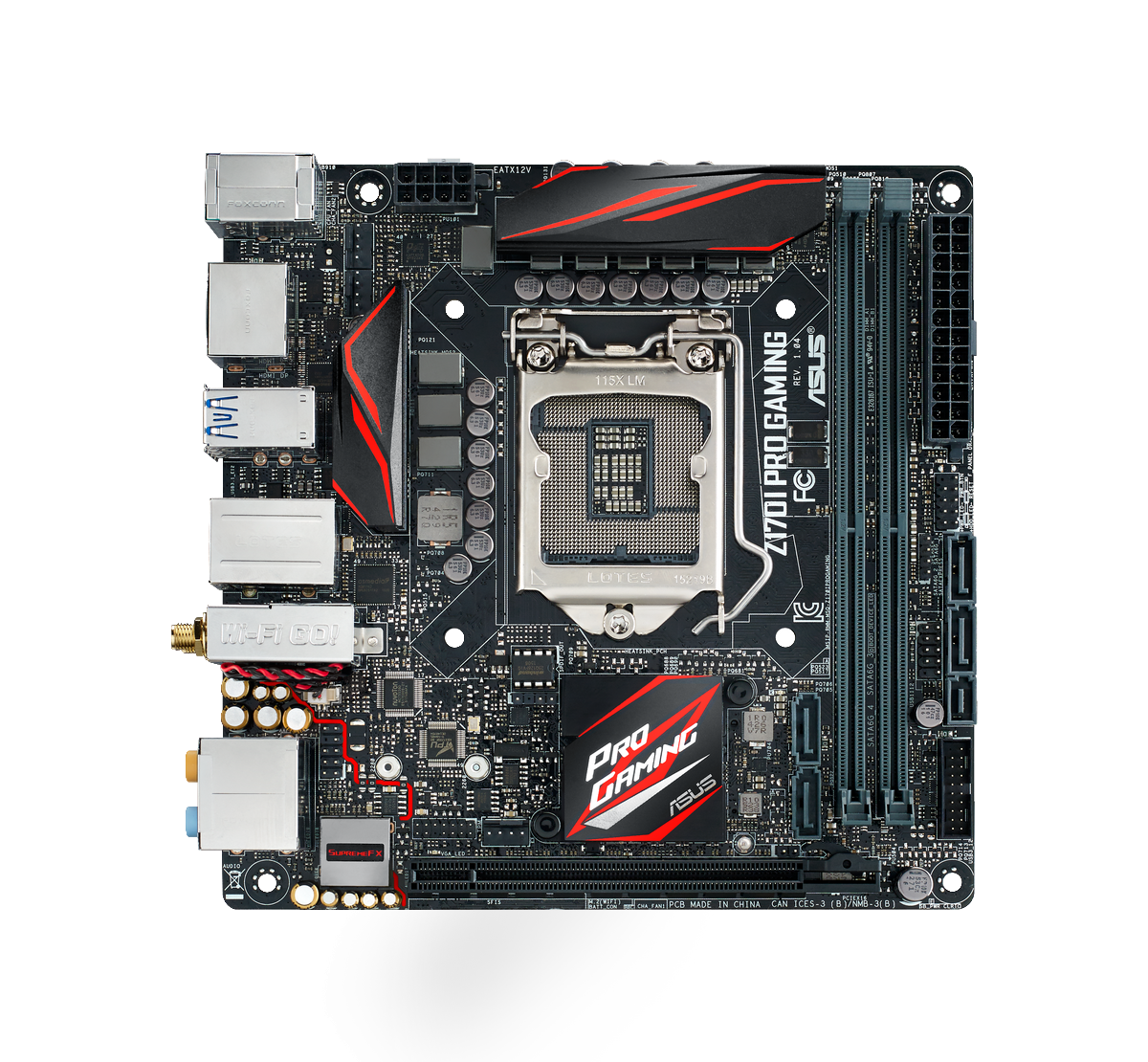

Z170I PRO GAMING |
|
Note: The specifications are subject to change without notice. |
|
|
CPU |
LGA1151 socket for 6th Generation Core™ i7/i5/i3/Pentium®/Celeron® Processors |
|
Supports 14nm CPU |
|
Supports Intel® Turbo Boost Technology 2.0* |
|
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
|
|
** Refer to www.asus.com for Intel® CPU support list. |
|
Chipset |
Intel® Z170 Express Chipset |
|
Memory |
2 x DIMM, max. 32GB, DDR4 3400(O.C.)*/3333(O.C.)*/3200(O.C.)*/3100(O.C.)*/3000(O.C.)*/2933(O.C.)*/2800(O.C.)*/2666(O.C.)*/2600(O.C.)*/2400(O.C.)*/2133 MHz, non-ECC, un-buffered memory |
|
Dual channel memory architecture |
|
Supports Intel® Extreme Memory Profile (XMP) |
|
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL(Qualified Vendors List) for details. |
|
Expansion Slots |
1 x PCI Express 3.0 x16 slots |
|
VGA |
Integrated Graphics Processor – Intel® HD Graphics support |
|
Multi-VGA output support: DisplayPort, HDMI |
|
Supports DisplayPort 1.2 with max. resolution 4096 x 2304@60Hz |
|
Supports HDMI 1.4b with max. resolution 4096 x 2160@24 Hz |
|
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
|
Maximum shared memory of 1024MB |
|
Storage |
Intel® Z170 Express Chipset with RAID 0, 1, 5, 10 and Intel® Rapid Storage Technology 14 support |
|
– 1 x SATA Express port (gray, compatible with 2 x SATA 6.0 Gb/s ports) |
|
– 1 x M.2 Socket 3 with M key, type 2242*/2260/2280 storage devices support (both SATA & PCIE x4 mode) |
|
– 2 x SATA 6.0 Gb/s ports (gray) |
|
– Supports Intel® Smart Response Technology** |
|
* Support with M.2 2242 mounting kit. |
|
** These functions will work depending on the CPU installed. |
|
LAN |
Intel Gigabit LAN |
|
Anti-surge LANGuard |
|
GameFirst technology |
|
Wireless |
Speedy Wi-Fi 802.11 a/b/g/n/ac supports dual frequency band 2.4/5 GHz |
|
Bluetooth v4.0 |
|

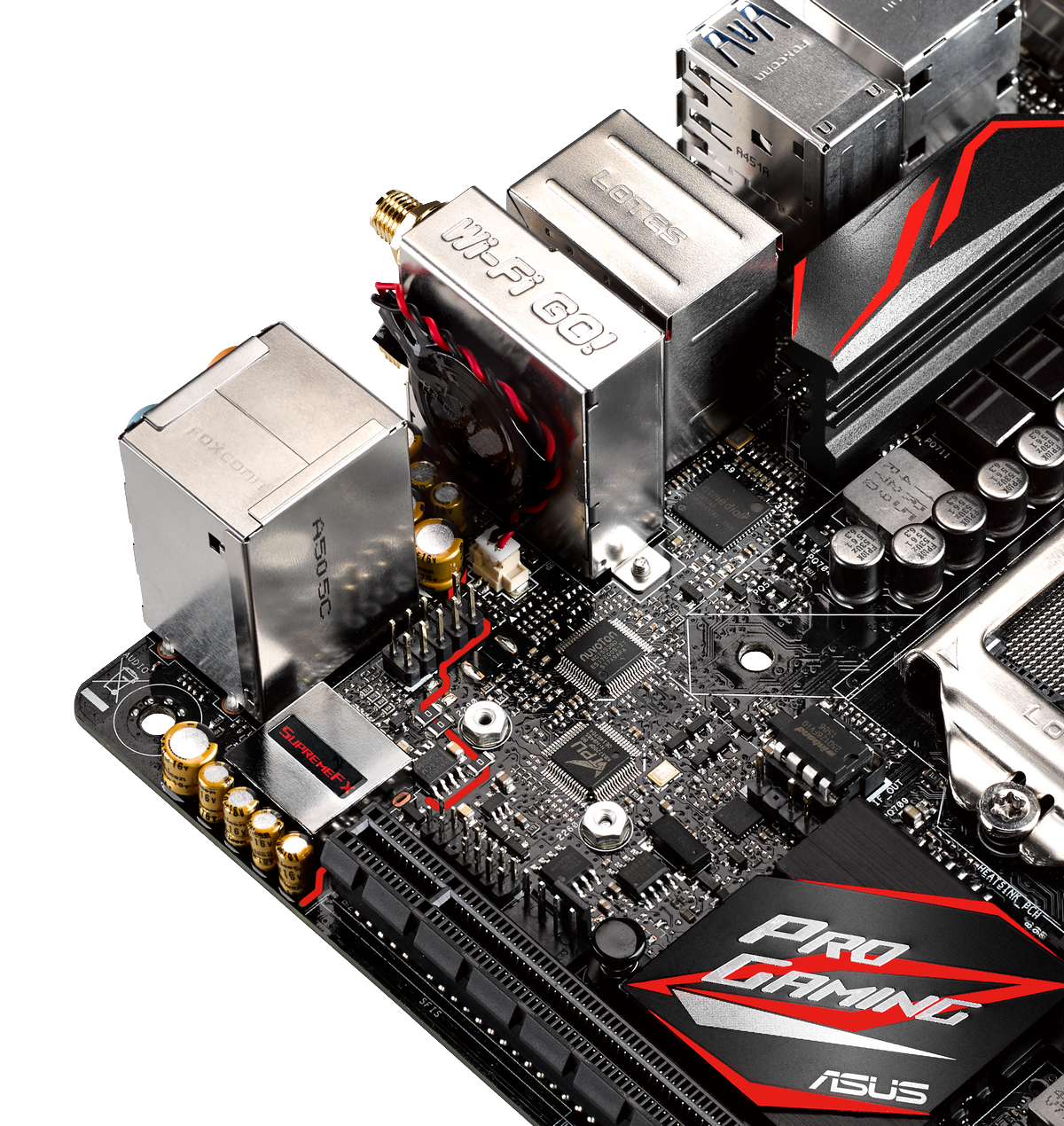

Audio |
SupremeFX 8-Channel High Definition Audio CODEC |
|
– Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking |
|
– High quality 115dB SNR stereo playback output |
|
Audio Features : |
|
– SupremeFX Shielding™ Technology |
|
– Headphone AMP |
|
– Optical S/PDIF out port at back panel |
|
– Sonic Radar II |
|
USB |
ASMedia® USB 3.1 Controller – supports ASUS USB 3.1 Boost |
|
– 2 x USB 3.1 ports (2 Type-A, red, black at back panel) |
|
Intel® Z170 Express Chipset – supports ASUS USB 3.1 Boost |
|
– 6 x USB 3.0/2.0 ports (2 ports at mid-board; 4 ports at back panel, blue) |
|
– 4 x USB 2.0/1.1 ports (2 ports at mid-board; 2 ports at back panel, black) |
|
ASUS Gaming Features |
Gamer’s Guardian II |
|
– DIGI+ VRM |
|
– DRAM Overcurrent Protection |
|
– ESD Guards on VGA, LAN, Audio, KBMS and USB3.1/3.0/2.0 ports |
|
– Highly durable components |
|
– Stainless Steel Back I/O |
|
Performance Optimization |
|
ASUS Dual Intelligent Processors 5 |
|
– 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 2+, and Turbo App |
|
DIGI+ VRM |
|
– ASUS DIGI+ VRM Utility |
|
EPU |
|
– EPU |
|
TPU |
|
– Auto Tuning, TurboV, GPU Boost |
|
Fan Xpert 2+ featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control |
|
RAM Cache |
|
Media Streamer |
|
– Pipe music or movies from your PC to a smart TV, your entertainment goes wherever you go! |
|
– Media Streamer app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems |
|
EZ DIY |
|
Push Notice |
|
– Monitor your PC status with smart devices in real time |
|
UEFI BIOS EZ Mode featuring friendly graphics user interface |
|
– O.C. Tuner |
|
– CrashFree BIOS 3 |
|
– EZ Flash 3 |
|
Q-Design |
|
– ASUS Q-Shield |
|
– ASUS Q-DIMM |
|
– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) |
|
– ASUS Q-Connector (cable) |
|
ASUS Exclusive Features |
|
– USB 3.1 Boost featuring speedy USB 3.1 transmission |
|
– AI Suite 3 |
|
– Disk Unlocker |
|
– AI Charger+ |
|
– ASUS CPU-Z |
|

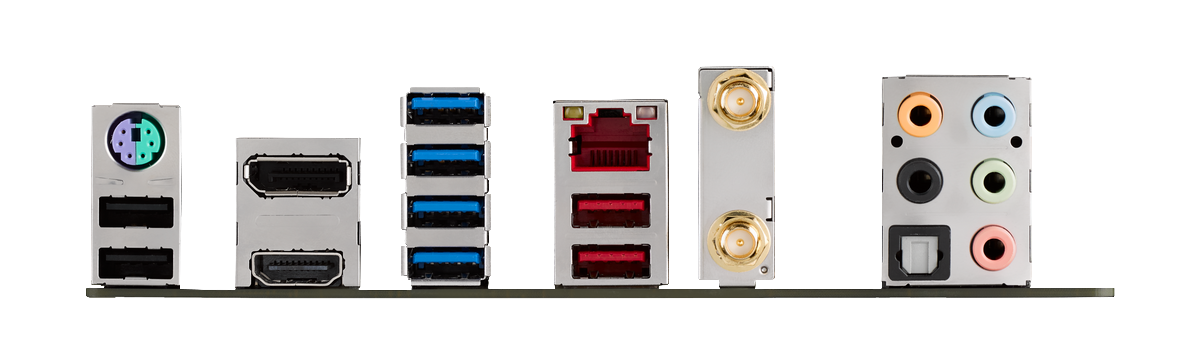

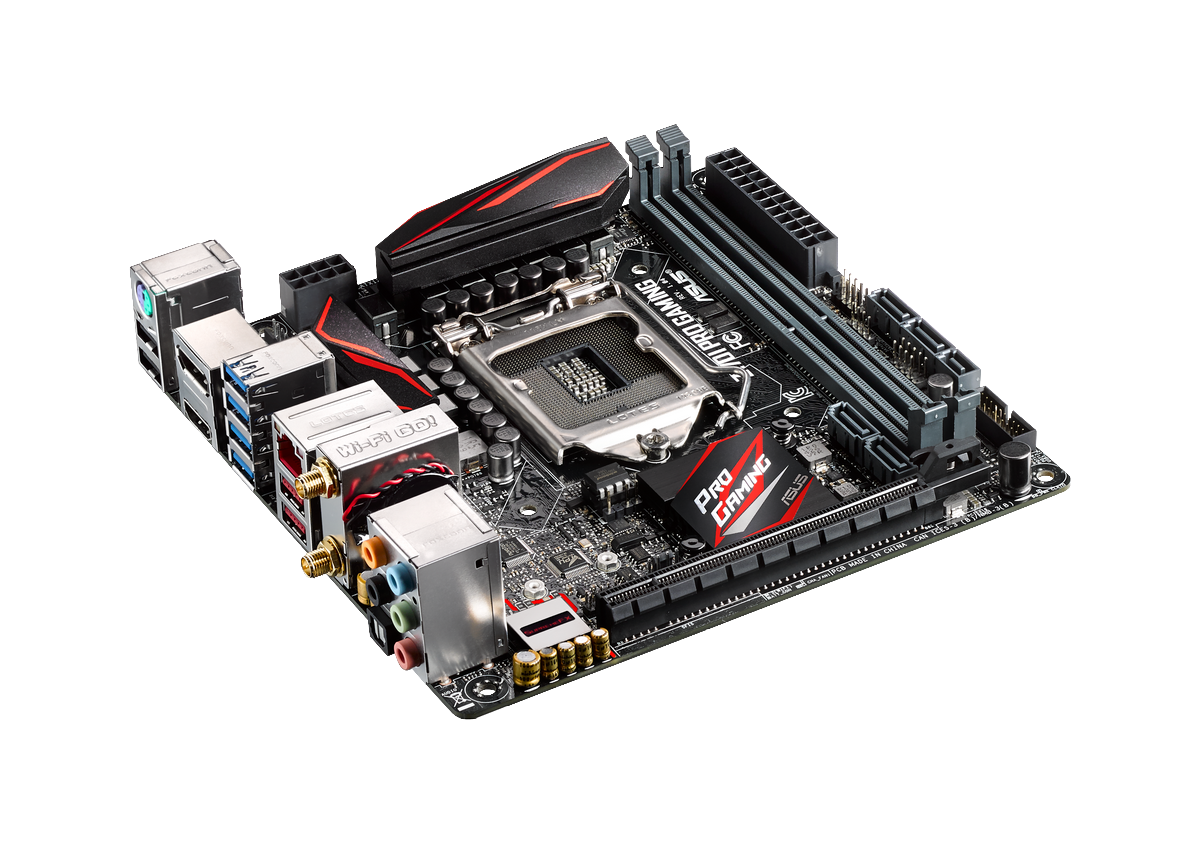

Back Panel I/O Ports |
1 x PS/2 keyboard/mouse combo port |
|
1 x Optical S/PDIF out |
|
1 x HDMI |
|
1 x DisplayPort |
|
2 x Wi-Fi antenna ports |
|
1 x LAN (RJ45) port |
|
2 x USB 3.1 ports (2 Type-A, red) |
|
4 x USB 3.0/2.0 ports |
|
2 x USB 2.0/1.1 ports |
|
8-channel audio I/O ports |
|
Internal I/O Connectors |
1 x 19-pin USB 3.0/2.0 connector supports additional 2 USB 3.0/2.0 ports |
|
1 x USB 2.0/1.1 connectors supports additional 2 USB 2.0/1.1 ports |
|
1 x System panel header |
|
1 x Front panel audio connector (AAFP) |
|
1 x SATA Express connector (gray, compatible with 2 x SATA 6.0 Gb/s ports) |
|
2 x SATA 6.0 Gb/s connectors (gray) |
|
1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices |
|
1 x CPU fan connector (4-pin) |
|
2 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control |
|
1 x speaker header |
|
1 x TPM header |
|
1 x 24-pin EATX Power connector |
|
1 x 8-pin EATX 12V Power connector |
|
1 x Clear CMOS jumper (2-pin) |
|
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,
CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12 PrintScreen function, F3 Shortcut function, and ASUS DRAM SPD (Serial Presence Detect) memory information |
|
Manageability |
WfM 2.0, DMI 3.0, WOL by PME, PXE |
|
Accessories |
4 x Serial ATA 6.0Gb/s cables |
|
1 x User manual |
|
1 x I/O shield |
|
1 x M.2 2242 mounting kit |
|
1 x PRO GAMING Cable Labels |
|
1 x M.2 screw package |
|
1 x CPU Installation Tool |
|
1 x Wi-Fi 2T2R Antenna |
|
1 x Support DVD |
|
Support DVD |
Drivers |
|
ASUS Utilities |
|
EZ Update |
|
Anti-virus software (OEM version) |
|
Operating System Support |
Windows® 10* |
|
Windows® 8.1* / Windows® 8 |
|
Windows® 7 |
|
*64-bit only |
|
Form Factor |
Mini-ITX Form Factor, 6.7”x 6.7” (17cm x 17cm) |
|
|
|
